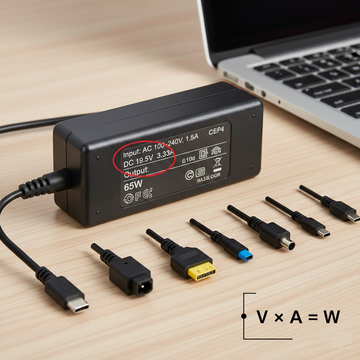

How to Choose the Right Laptop Charger: Voltage, Wattage, Connector Types

Choosing the right laptop charger isn't as simple as grabbing any spare plug. Using an incorrect charger can damage your laptop's battery, motherboard, or even pose a safety risk. Understanding three key specifications—voltage, wattage, and connector type—is crucial.

1. Voltage (V): The Electrical Pressure

Voltage (V) is the "pressure" at which electricity flows. It's the most critical match between your laptop and its charger.

• Must Match Exactly: The charger's output voltage must match your laptop's required input voltage precisely. For example, if your laptop needs 19.5V, you must use a 19.5V charger.

• Location: You can usually find your laptop's required voltage on:

  • The original charger's label (under "Output").

  • A sticker on the bottom of your laptop (under "Input").

  • Your laptop's manual or manufacturer's website.

• Why it Matters:

  • Higher Voltage: Can permanently damage your laptop's internal components.

  • Lower Voltage: May prevent your laptop from charging or cause it to charge very slowly, often while displaying an error message.

2. Wattage (W): The Power Output

Wattage (W) is the total amount of power the charger can deliver. It's calculated by multiplying voltage (V) by amperage (A).

• Match or Exceed: The charger's wattage must be equal to or greater than your laptop's required wattage.

• Location:

  • Original charger label (e.g., "65W," "90W").

  • Laptop's bottom sticker or manual.

• Why it Matters:

  • Lower Wattage: Your laptop might charge very slowly, not at all, or run into performance issues (especially under heavy load) as it can't draw enough power. The charger itself might overheat or fail.

  • Higher Wattage: A charger with higher wattage is generally safe, as your laptop will only draw the power it needs. It acts like a larger power supply with more reserve capacity.

• Amperage (A): While wattage is the overall power, amperage (A) is the electrical current. As long as the voltage matches, a charger with slightly higher amperage than required is usually fine, as the laptop will only draw what it needs.

3. Connector Type: The Physical Fit

This is the most obvious, but equally important factor. The physical plug that connects to your laptop must fit perfectly.

• Variety of Shapes: Laptop connectors come in many shapes and sizes:

  • Barrel Connectors: The most common, with varying outer and inner diameters.

  • USB-C: Becoming standard for many modern laptops, supporting power delivery.

  • Proprietary Connectors: Some brands (like older HP or Dell models) use specific designs (e.g., Dell's smart pin).

• Why it Matters:

  • Incorrect Fit: Forces you to push, which can damage the laptop's charging port or the charger's tip.

  • Loose Fit: Can lead to intermittent charging, sparking, or overheating.
