Eight BougeRV 1-to-5 Solar Y Branch Connector Cable Kits – MC4 Compatible Parallel PV Adapters (IP67 Waterproof, 30A 1000V) with Y-shaped splitters are arranged in a fan shape on a white background. Each cable features MC4 solar connectors on both ends and helpful labels near the splitter, allowing for efficient parallel connection of up to five solar panels.

BougeRV 1-to-5 Solar Y Branch Connector Cable Kit – MC4 Compatible Parallel PV Adapter, IP67 Waterproof, 30A 1000V

$40.24
Skip to product information
Eight BougeRV 1-to-5 Solar Y Branch Connector Cable Kits – MC4 Compatible Parallel PV Adapters (IP67 Waterproof, 30A 1000V) with Y-shaped splitters are arranged in a fan shape on a white background. Each cable features MC4 solar connectors on both ends and helpful labels near the splitter, allowing for efficient parallel connection of up to five solar panels.
  • Eight BougeRV 1-to-5 Solar Y Branch Connector Cable Kits – MC4 Compatible Parallel PV Adapters (IP67 Waterproof, 30A 1000V) with Y-shaped splitters are arranged in a fan shape on a white background. Each cable features MC4 solar connectors on both ends and helpful labels near the splitter, allowing for efficient parallel connection of up to five solar panels.

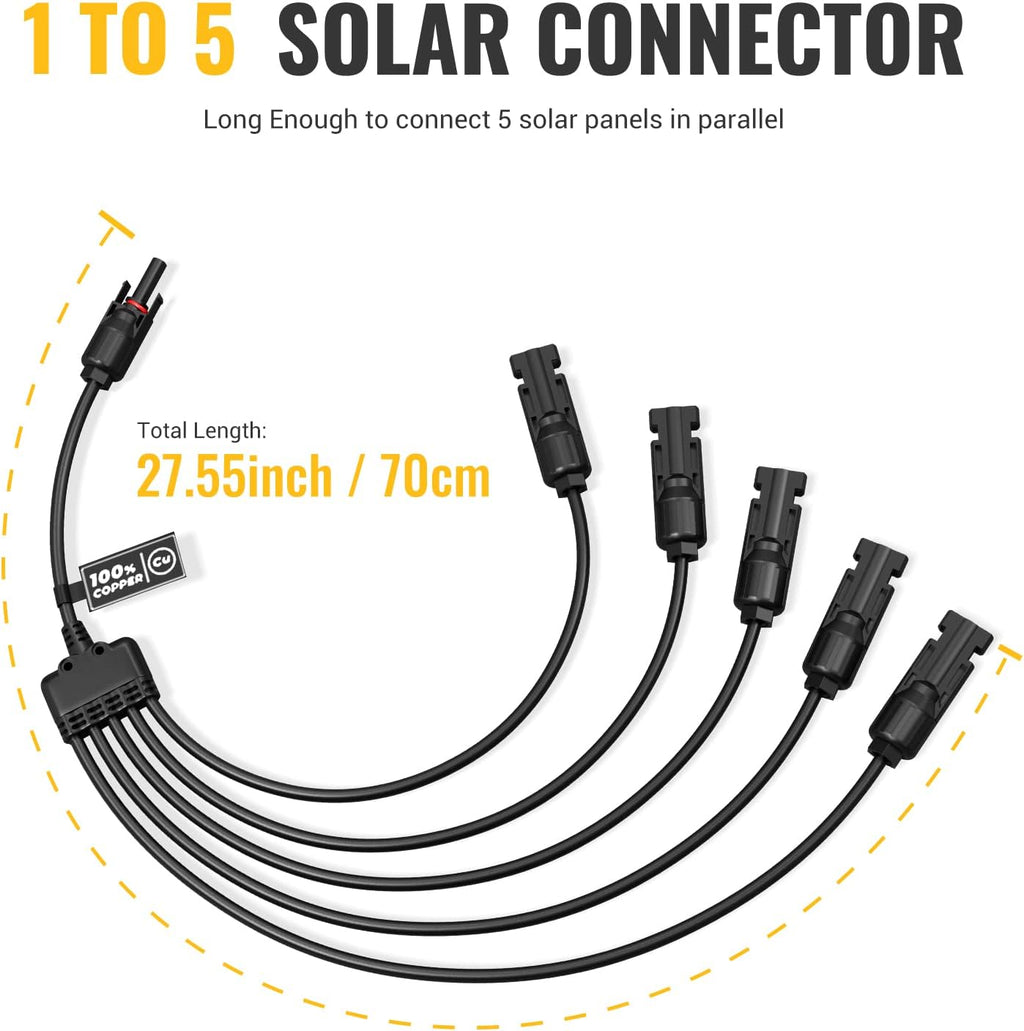

  • Here's the rewritten sentence using the provided product data: Diagram of the BougeRV 1-to-5 Solar Y Branch Connector Cable Kit – an MC4 compatible parallel PV adapter that is IP67 waterproof and supports up to 30A at 1000V. The cable measures 27.55 inches (70 cm) in length, featuring one MC4 input and five MC4 outputs for securely connecting multiple solar panels in parallel. This connector kit is ideal for efficiently joining five solar panels together.

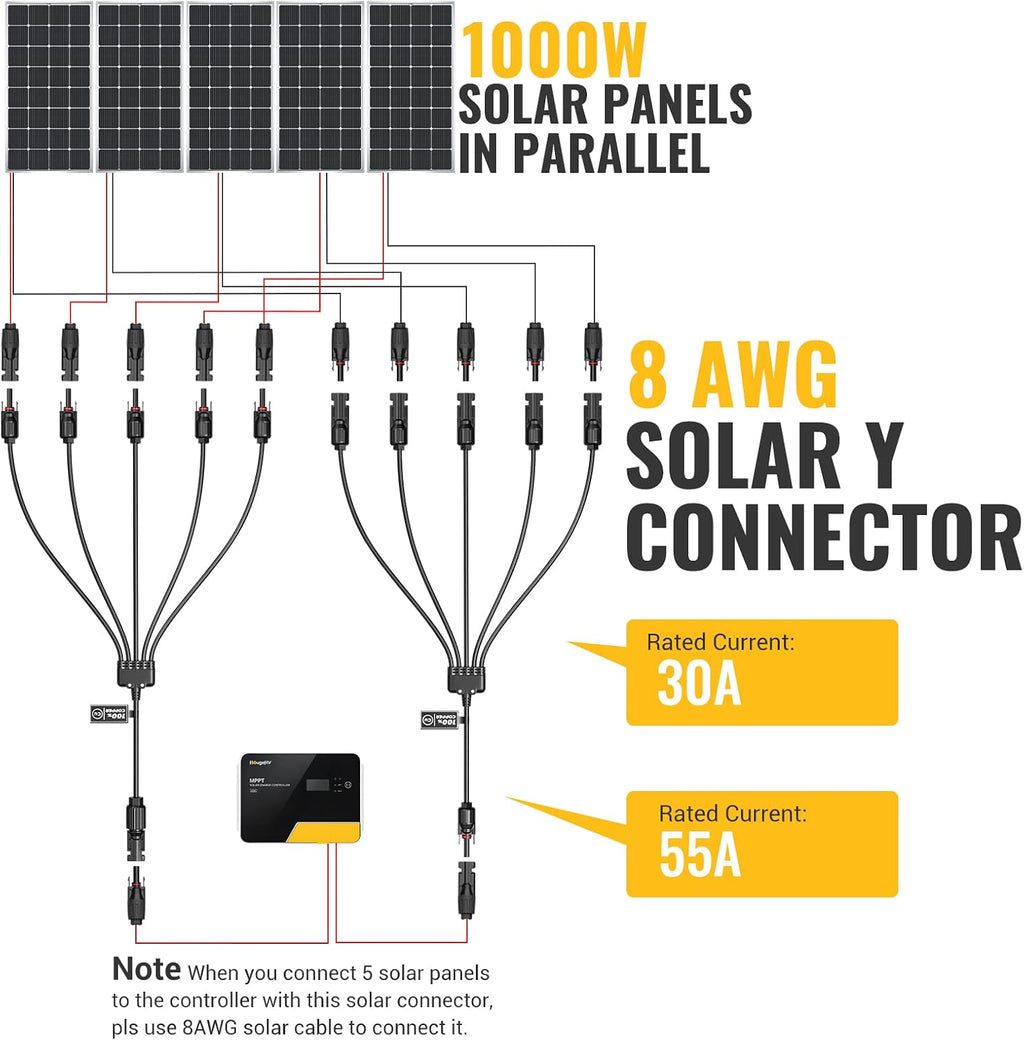

  • Diagram showing 1000W solar panels connected in parallel using the BougeRV 1-to-5 Solar Y Branch Connector Cable Kit – an MC4 compatible parallel PV adapter rated at 30A and 1000V (IP67 waterproof) – and MC4 solar connectors; a note advises using 8AWG cable when connecting five solar panels.
  • Diagram showing four solar panels on an RV roof connected with MC4 solar connectors to a charge controller, battery, and inverter, supplying power for devices such as TVs, phones, laptops, and a fridge. The setup is labeled "1-on-1 Solar Solution" by BougeRV. For increased power demands, add the BougeRV 1-to-5 Solar Y Branch Connector Cable Kit – MC4 Compatible Parallel PV Adapter (IP67 Waterproof, 30A 1000V) to easily connect five solar panels in parallel for even greater energy output.

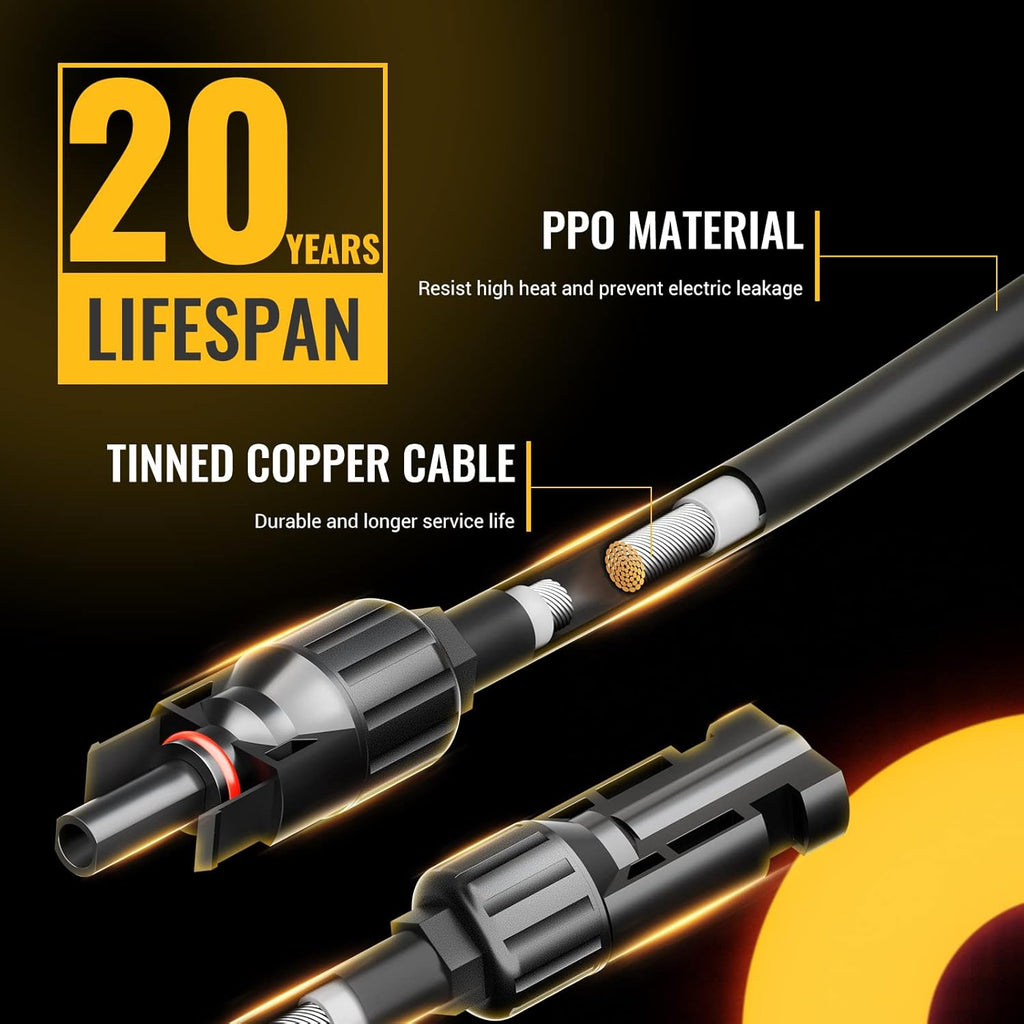

  • Close-up of the BougeRV 1-to-5 Solar Y Branch Connector Cable Kit—an MC4 compatible parallel PV adapter made with tinned copper cable and durable PPO material for enhanced safety and longevity, featuring an IP67 waterproof rating, a 20-year lifespan, and the ability to connect up to five solar panels using either standard MC4 connectors or a Y branch connection; rated for 30A and up to 1000V.

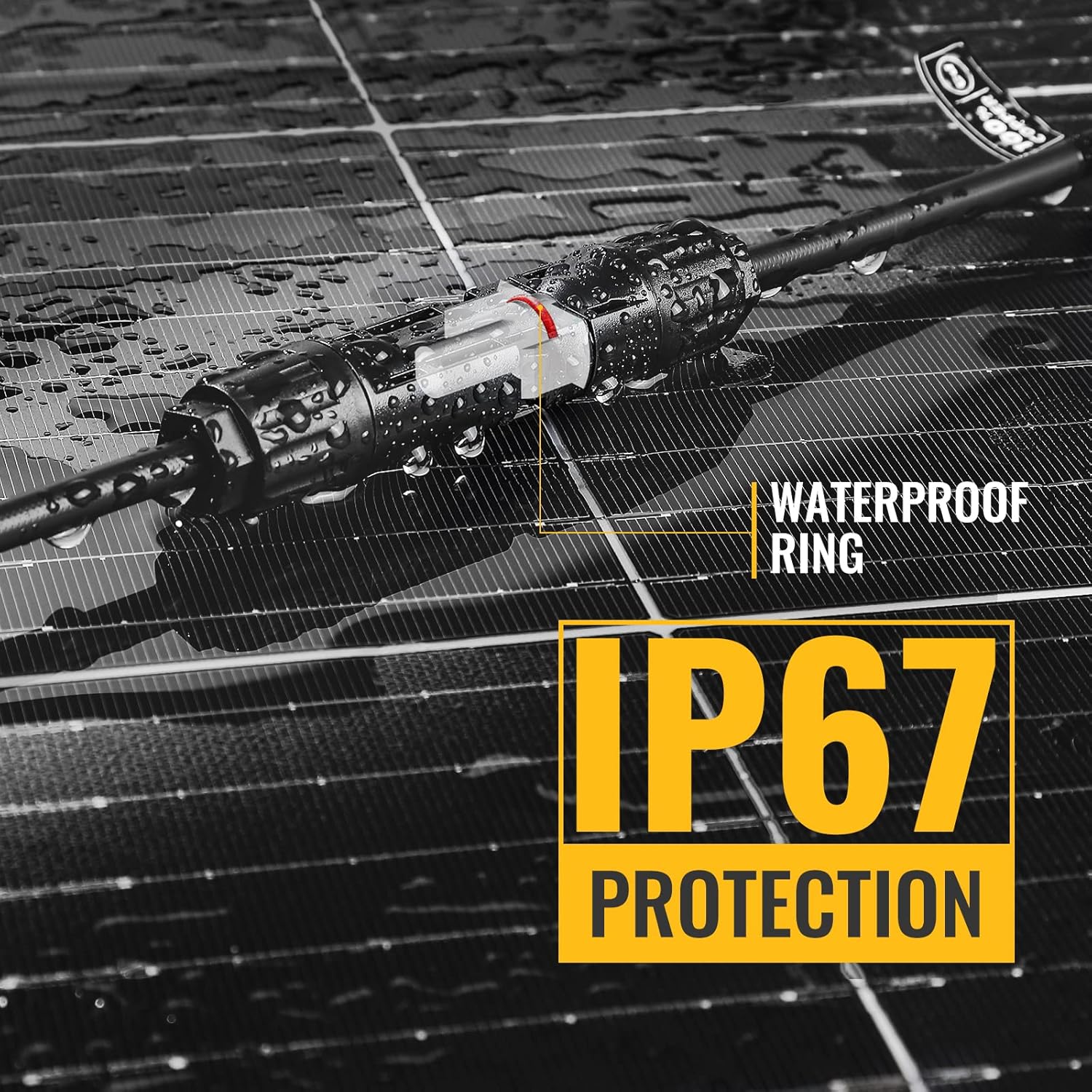

  • A close-up of the BougeRV 1-to-5 Solar Y Branch Connector Cable Kit shows its black, IP67 waterproof construction with water droplets on its surface, highlighting features like the “Waterproof Ring.” This MC4-compatible parallel PV adapter securely connects up to five solar panels in outdoor settings—ideal for reliable and weather-resistant solar installations.

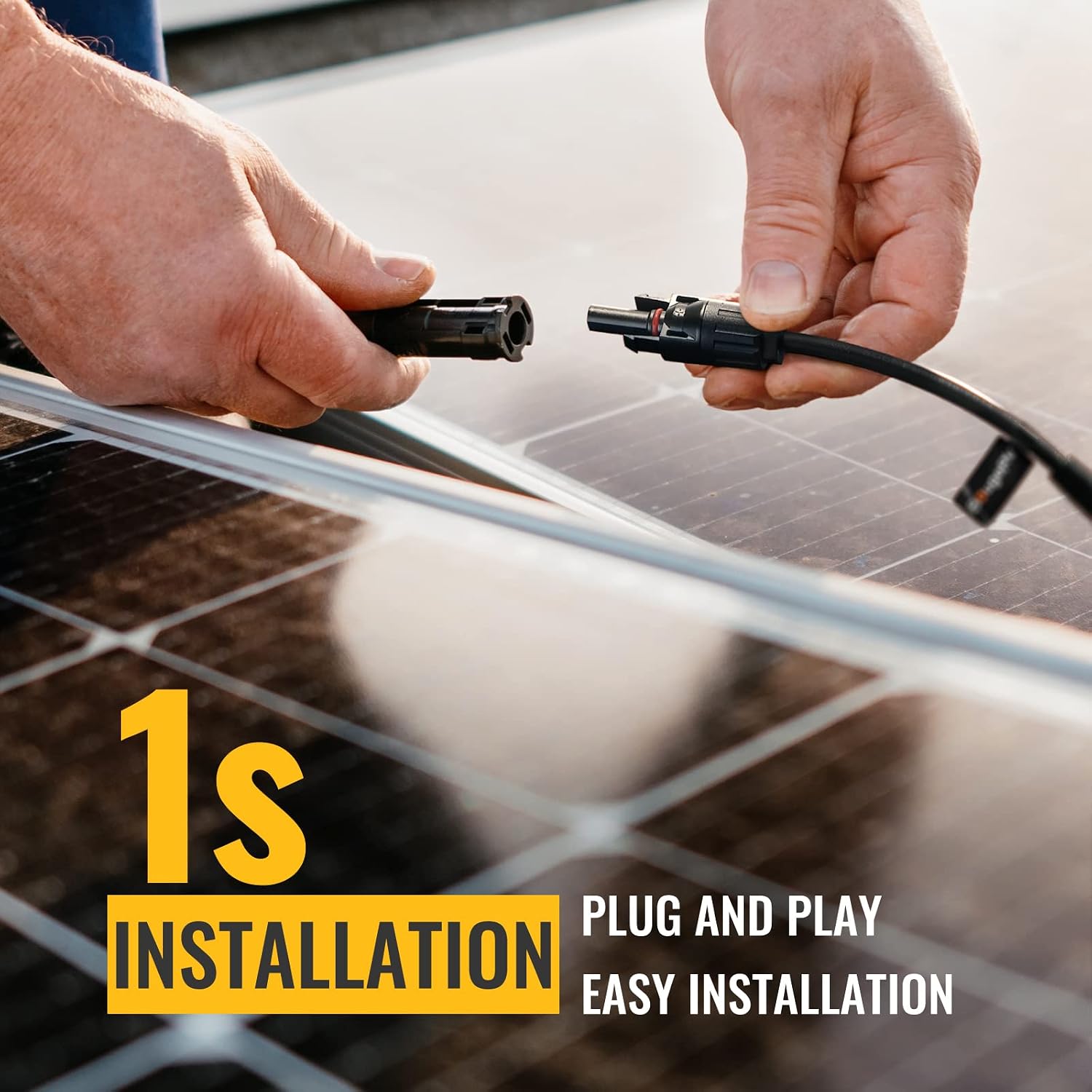

  • Close-up of hands connecting two cables on a solar panel using the BougeRV 1-to-5 Solar Y Branch Connector Cable Kit – MC4 Compatible Parallel PV Adapter, IP67 Waterproof, 30A 1000V, with text: "1s Installation. Plug and play. Easy installation" in yellow and white font.
  • A man crouches outdoors, connecting wires with the BougeRV 1-to-5 Solar Y Branch Connector Cable Kit – MC4 Compatible Parallel PV Adapter (IP67 Waterproof, 30A 1000V) to a solar panel under a clear blue sky, with green trees in the background.
BougeRV 1-to-5 Solar Y Branch Connector Cable Kit – MC4 Compatible Parallel PV Adapter, IP67 Waterproof, 30A 1000V

BougeRV 1-to-5 Solar Y Branch Connector Cable Kit – MC4 Compatible Parallel PV Adapter, IP67 Waterproof, 30A 1000V

$40.24
A white check mark centered inside a solid dark blue circle on a light gray background.

Reliable performance with precision-tested power delivery.
A white check mark centered inside a solid dark blue circle on a light gray background.

Energy-efficient design reduces heat and power loss.
A white check mark centered inside a solid dark blue circle on a light gray background.

Trusted by customers nationwide for consistent quality.
Logos of major payment methods: Mastercard, PayPal, Visa, American Express, Apple Pay, Discover, Google Pay, and JCB, displayed side by side on a white background.
Description

Expand your solar array quickly and securely with the BougeRV 1-to-5 Solar Y Branch Connector Kit. Featuring one 5-way positive connector and one 5-way negative connector, these extra-long 27.5-inch MC4-compatible adapters allow you to connect up to five solar panels in parallel without additional extension cables. Built with weatherproof PPO construction and rated for 30A at 1000V DC, they're ideal for RV, off-grid, marine, and residential solar systems.

Connect Five Solar Panels in Parallel

Designed for expanding photovoltaic systems, this connector kit combines the output of up to five solar panels into a single connection.

Kit includes:

  • 1 × Male to 5 Female connector (M/FFFFF)
  • 1 × Female to 5 Male connector (F/MMMMM)

Perfect for:

  • RV solar systems
  • Off-grid cabins
  • Residential solar arrays
  • Portable solar installations
  • Marine solar systems

Extra-Long 27.5-Inch Cables

Unlike short branch connectors, BougeRV's extended cable length provides additional flexibility during installation.

Benefits include:

  • Easier panel routing
  • Reduced cable strain
  • Cleaner installation
  • Greater spacing between panels
  • Often eliminates the need for additional extension cables

Universal MC4 Compatibility

Designed to work with most standard photovoltaic connectors.

Compatible with:

  • MC4-style solar connectors
  • 10 AWG solar cable
  • 12 AWG solar cable
  • 14 AWG solar cable

Integrates easily with most modern solar panels and charge controllers.

Built for Outdoor Solar Installations

Manufactured from durable PPO material with weather-resistant construction.

Features include:

  • IP67 waterproof rating
  • Dustproof design
  • UV resistant
  • Weather resistant
  • Corrosion resistant
  • Operating temperature:
    -40°F to 221°F (-40°C to 105°C)

Built for long-term outdoor performance.

Quick Locking Installation

Integrated locking tabs provide secure connections while allowing quick installation and removal without specialized tools.

Features:

  • Tool-free installation
  • Positive locking mechanism
  • Secure electrical connection
  • Easy disconnect when needed

Technical Specifications

Specification Details
Product Type Solar Y Branch Connector Kit
Brand BougeRV
Configuration 1-to-5 Parallel Connector Set
Connector Type MC4 Compatible
Cable Length 27.55 in (70 cm)
Rated Current 30A
Rated Voltage 1000V DC
Waterproof Rating IP67
Cable Compatibility 10 AWG–14 AWG
Housing Material PPO
UV Resistant Yes
Weather Resistant Yes
Operating Temperature -40°F to 221°F (-40°C to 105°C)
Color Black

Why You'll Love It

Expanding a solar array doesn't have to mean complicated wiring. The BougeRV 1-to-5 Solar Y Branch Connector Kit simplifies parallel solar panel connections with extra-long cables, rugged weatherproof construction, and universal MC4 compatibility, making it easy to build reliable, expandable solar systems.
Shipping

We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.
Manufacturing

Our products are manufactured both locally and globally. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.
Simple line drawing of a steel I-beam shown in perspective view, with solid and dashed lines indicating dimensions or internal structure.

Metal Exterior
A simple line drawing of a computer monitor with a paintbrush icon overlaid on the screen, representing digital design or graphic design.

Travel-Ready Design
Simple line icon showing a padlock in the center, surrounded by four networked devices, symbolizing cybersecurity, internet security, or secure network communication.

Multi-Device Charging
A simple, black line drawing of three leaves arranged in a circular pattern, symbolizing recycling or sustainability, on a light gray background.

Eco-Friendly
1-to-5 MC4 Solar Y Branch Connector Kit for Parallel Solar Panels

1-to-5 MC4 Solar Y Branch Connector Kit for Parallel Solar Panels

Expand your solar array with the BougeRV 1-to-5 Solar Y Branch Connector Kit. Featuring extra-long 27.5-inch MC4-compatible cables, IP67 waterproof construction, 30A/1000V DC ratings, and compatibility with 10–14 AWG solar cable, this adapter kit makes parallel solar panel installations simple, secure, and reliable.
